Firefighting System Solution
●Customized
●Assembled & tested
Overview

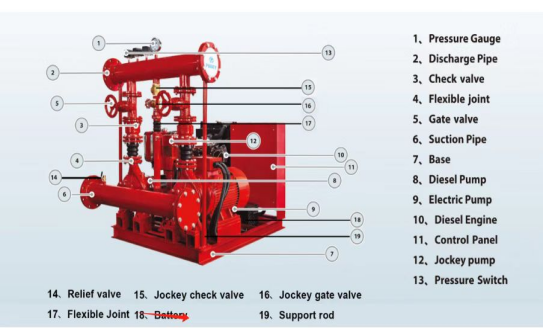

The Fire Pump System Solution offers a complete, ready-to-install firefighting pump package that includes all necessary components — piping network, valves, couplings, pressure gauges, switches, and more. Each system can be customized to meet the specific requirements of your project, whether for commercial, industrial, or residential applications.
Before shipping, every unit is fully assembled and tested in our factory to ensure reliable performance. Upon delivery, you can install it immediately without additional adjustments — ensuring safety, efficiency, and peace of mind.
Challenges Faced by Customers
Solution
ll-in-One Package:
Fire pump, pipework, valves, couplings, pressure gauges, and switches supplied in a single, integrated system.
Customizable Configurations:
Add or remove components based on project needs.
Pre-Tested & Pre-Configured:
Every system is assembled, tested, and calibrated before leaving the factory.
Plug-and-Play Installation:
Simply connect the system on site and it’s ready for operation — no extra adjustments required.
DESCRIPTION：
Fire pumps are designed for whole operational life, themaximum reliability is always the first priority，The components affixed onto a steel framing structureEach controller has its own individual pressure sensing line*The suction line should never include a strainer*Check valve and butterfly valve in the discharge line*NFPA 20 not allows suction from negative level for endsuction and split case pumps

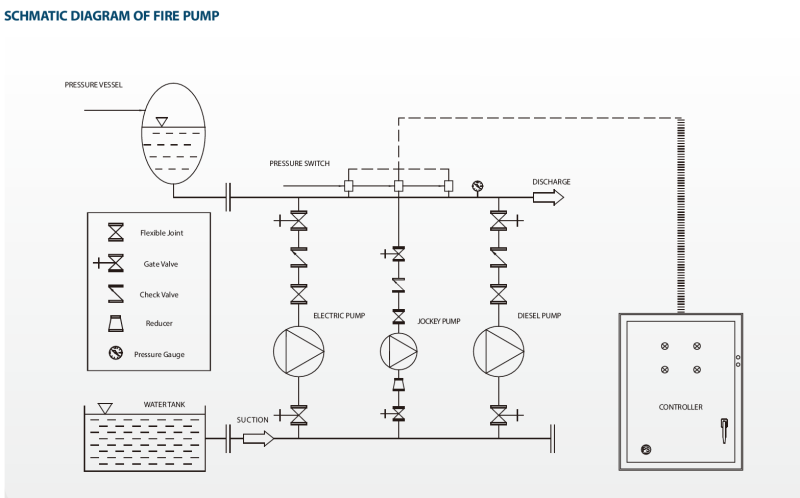

PRINCIPLE：
When pressure drops below the set value, jockey starts running with thesignal from the pressure switch and continues running for 10 minutes tillthe system pressure reaches the set value. lf the pressure continues dropfirst the main pump starts to run. lf the system pressure can’t supply andpressure continues drop, the standby pump starts to run.
